What is sub-surface irrigation and How to Install it
Jun 1st 2023
If you are going to to Drill the Pipe and use a 10/24 taping tool ..Be on notice that the sprinkler Pipe {conduit) is not very Thick which will cause complications on the Tapping Process..Also you Will Be Tapping Plastic not Metal ..Electrical PVC 1/2 Pipe Schedule 80 is thicker pipe ..and much Better.. which will allow this mister to screw in Securely for a Seal Under this type of Pressure from the Sprinkler Valve's ..If you do not want to use the Tapping Method ..i suggest Getting the Coupling with the 10/24 Threading already there for you to Carefully screw in the mister ..These Coupling's run $3.00 each Aprox..at Home Depot ..(These are Top Tornado Mister's If Installed Correctly) ..
even distribution. i have hundreds in use. higher pressures(fewer in use) result in finer mist like droplets. Too many or low pressures give uneven sprays.
It appears that many of them spray more on one side than the other. Not a very even distribution of water.

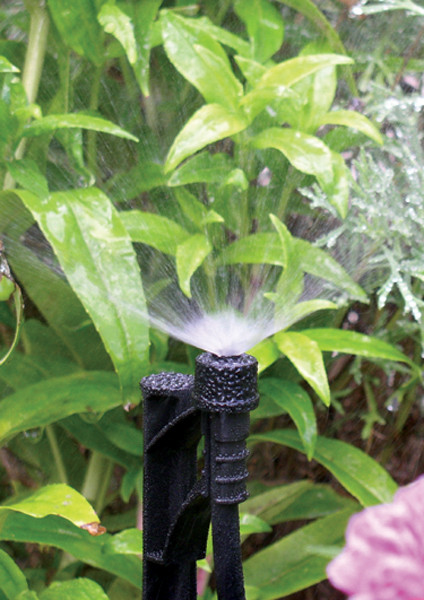

Tornado Misters are excellent for propagation, seedlings, giant pumpkins and any moisture loving plant. Their even distribution and easy installation make them a favorite with our customers. They have a wide operating pressure range of 20 - 60 PSI. Average droplet size is 140 microns.
These 10/24 threaded base Tornado Misters are designed to be installed in the upright position. They can be inserted into EZ-Stakes, Rigid Risers, 1/4" micro tubing, or directly into mainline tubing or PVC pipe. To install in PVC pipe, drill a hole and thread with a 10/24 tap.
SKU | Color | GPH @ 20 PSI | Diam. @ 20 PSI | GPH @ 40 PSI | Diam. @ 40 PSI |
---|---|---|---|---|---|
MTFB | Black | 4 GPH | 4 feet | 5.5 GPH | 4 ft |
MTFR | Red | 8 GPH | 6 ft | 11.5 GPH | 6 ft |
