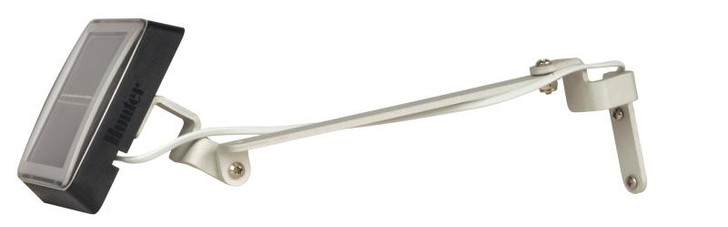

The Hunter Solar Panel Kit for Node and XC Hybrid Controllers delivers eco-friendly, maintenance-free operation for your remote irrigation sites. Designed to completely eliminate the need for routine battery replacements, this robust kit harnesses the sun's energy to power your controllers 24 hours a day, 7 days a week. It acts as the perfect upgrade for Hunter NODE Battery Controllers, ensuring your off-grid watering systems run flawlessly year after year without unexpected power failures.
Installation is quick and highly versatile, offering both on-the-wall and in-valve-box mounting options. The kit includes 40 feet of heavy-duty, UV-rated 18 AWG wire, and the panel can be placed up to 200 feet away from the charging cell to capture optimal sunlight. By providing 100% of the controller's power requirements natively, this solar panel is the most convenient and environmentally conscious solution for automating your landscape while keeping toxic alkaline batteries out of landfills.
Detailed specifications for system planning.
| Specification | Details |
|---|---|
| Product Type | Solar Panel Power Kit |
| Compatibility | Hunter XC Hybrid and NODE Controllers |
| Supplied Wire | 40 ft (12m) of 18 AWG UL Rated Wire |
| Maximum Wire Distance | 200 ft (61m) from charging cell to panel |
| Mounting Options | Wall, Post, or Valve Box |
| Power Output | Provides 100% of required controller power |
| Warranty | 2-Year Manufacturer Warranty |
| Brand | Hunter Industries |
Upgrade your battery controller to solar power quickly.
Step 1: Mount the Solar Panel
Secure the solar panel to a wall, post, or roof in a location that receives full, direct sunlight for the majority of the day without obstruction.
Step 2: Route the Wire
Run the supplied 40-foot UV-rated 18 AWG wire from the solar panel down to your underground valve box or controller mounting location. (Wire can be extended up to 200 feet if necessary).
Step 3: Connect to Controller
Attach the charging cell leads to the dedicated power input terminals on your compatible Hunter NODE or XC Hybrid controller, securing the waterproof connection.
Step 4: Remove Batteries
Ensure you remove any existing alkaline batteries from the controller compartment, as the solar panel will now provide 100% of the required operating power.
Does the Hunter Solar Panel replace the batteries completely?
Yes, once connected, the Hunter Solar Panel supplies 100% of the controller's power, completely eliminating the need for alkaline batteries. This provides true maintenance-free operation for your off-grid irrigation system.
Make sure to remove any existing batteries from the controller when installing the solar upgrade.
Which controllers are compatible with this solar kit?
This specific Hunter Solar Panel is designed exclusively for use with Hunter XC Hybrid and Hunter NODE battery-operated controllers. It will not power standard 24V AC controllers or other brands.
Connecting it to incompatible models may cause damage or fail to operate the valve solenoids.
How far away can I mount the Hunter Solar Panel?
The solar panel can be mounted up to a maximum distance of 200 feet (61 meters) from the charging cell using 18 AWG wire, allowing you to reach direct sunlight even if the valve box is shaded.
The kit comes with 40 feet of wire out of the box, which is sufficient for most standard installations.
How should I prepare my Hunter Solar Panel for spring?
Prepare the Hunter Solar Panel for spring by gently wiping the glass surface with a damp cloth to remove winter dust and debris, ensuring it captures maximum sunlight to power your controller all season.
Also, inspect the wire connections at the panel and the controller to ensure they remain tight and secure after the winter freeze.
