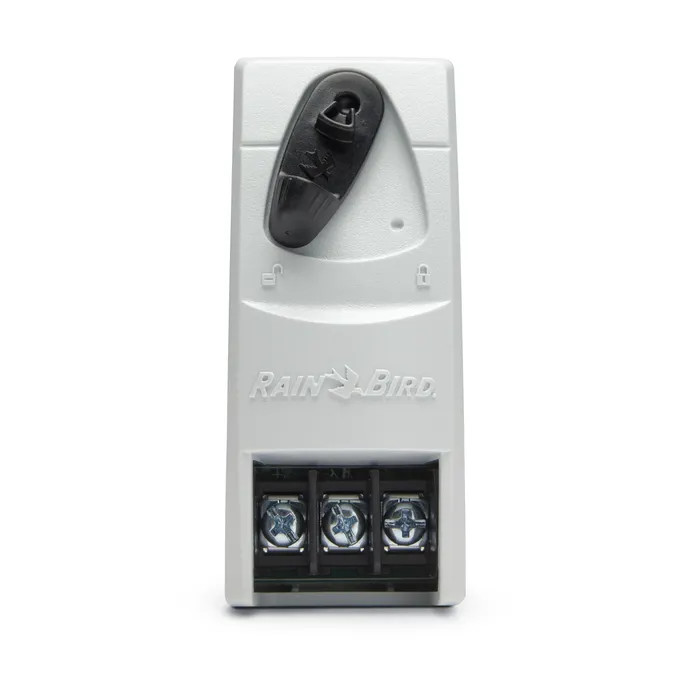

The Rain Bird 3-Station Expansion Module (F38200) provides a highly cost-effective and simple way to scale your existing residential irrigation system. Designed specifically for modular Rain Bird controllers, this genuine expansion module instantly adds three additional watering zones to your setup. Instead of replacing your entire controller when you add new garden beds or lawn zones, simply snap this module in to expand your capacity and wire up your new 24V AC irrigation valves.
Installation is exceptionally straightforward. The F38200 module is designed to slide securely into any available expansion slot inside your compatible Rain Bird cabinet. It is fully compatible with the highly popular ESP-M, ESP-Me, ESP-SMT, and ESP-SMTe series timers. By utilizing expansion modules, you ensure your irrigation controller seamlessly grows right alongside your landscape.
Detailed specifications for system planning.
| Specification | Details |
|---|---|
| Product Type | Irrigation Controller Expansion Module |
| Stations Added | 3 Stations |
| Compatibility | ESP-M, ESP-Me, ESP-SMT, and ESP-SMTe Series |
| Mounting Location | Internal Controller Slot |
| Power Type | Powered by Base Controller (24V AC) |
| Brand | Rain Bird |
| MPN | F38200 |
Expand your Rain Bird controller in minutes.
Step 1: Power Down (Recommended)
While many modular components are hot-swappable, it is always safest to disconnect AC power to your Rain Bird controller before opening the panel and installing new hardware.
Step 2: Locate an Open Slot
Open the front panel of your compatible ESP series controller to expose the internal expansion bays. Locate any available, empty slot.
Step 3: Install the Module
Carefully slide the F38200 3-station module into the open slot until it firmly clicks and locks into place. The controller will automatically recognize the new module once powered back on.
Step 4: Wire the New Zones
Run your new multi-strand direct burial wire into the cabinet. Strip the wire ends and secure them into the newly added numbered terminals on the module to connect your field valves.
Does the Rain Bird F38200 module work with all controllers?
No, the Rain Bird F38200 module is exclusively designed for Rain Bird ESP-M, ESP-Me, ESP-SMT, and ESP-SMTe series modular controllers. It will not fit or function in other brands or non-modular timers.
Always check your base controller's model number before purchasing an expansion module to ensure strict compatibility.
Do I need to turn off power to install the 3-station module?
While some modules are hot-swappable, we highly recommend disconnecting AC power to your Rain Bird controller before installing the F38200 expansion module to ensure maximum safety and prevent accidental electrical shorts.
Once the module is snapped in and the new valve wires are secured, you can safely restore power.
Can I install the Rain Bird F38200 in any open slot?
Yes, the Rain Bird F38200 3-station expansion module is universally designed to snap securely into any available open expansion slot within your compatible Rain Bird controller's interior cabinet.
The controller's software will automatically register the module and assign the next logical station numbers to those terminals.
How should I prepare my expanded Rain Bird system for spring?
Prepare your system for spring by snapping in your F38200 expansion module for any new garden zones, verifying all valve wiring connections, and running a quick test cycle across all stations.
Once you verify that all new and existing valves are opening and closing properly, you can confidently program your seasonal watering schedule.
Please note the strict requirements for this component:
