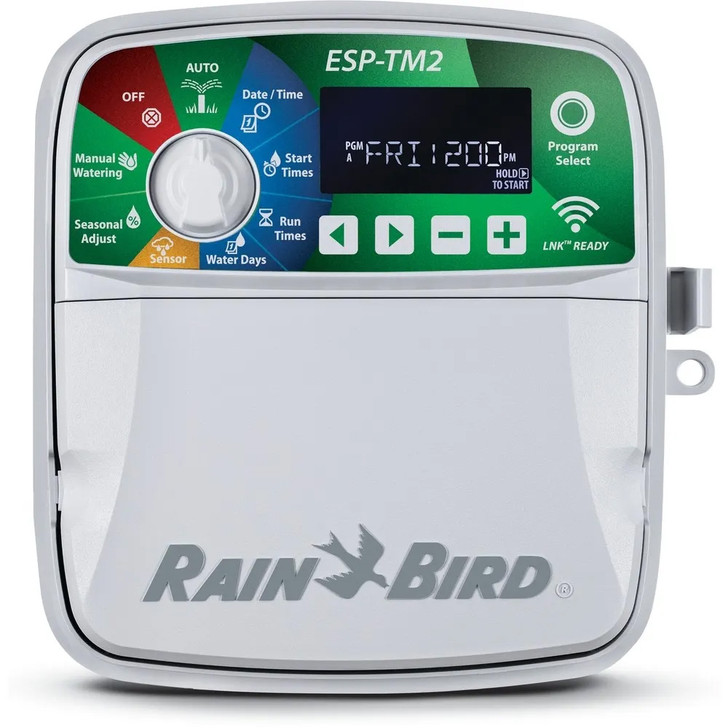

Rain Bird ESP-TM2 - 8 Station Indoor/Outdoor 120V Irrigation Controller (LNK WiFi-compatible)

Get your AC controller running smoothly in minutes.

Step 1: Mount the Enclosure
Secure the weather-resistant cabinet to an indoor or outdoor wall using appropriate mounting hardware. Ensure it is mounted within 6 feet of a standard 120V AC electrical outlet.

Step 2: Connect AC Power
Simply plug the factory-installed 6-foot outdoor-rated power cord into your 120V AC wall outlet. No complicated hardwiring is necessary!

Step 3: Wire the Valves
Run multi-strand direct burial wire from your 24V AC valve manifolds to the controller. Connect the common wire to the 'C' terminal and individual valve wires to the numbered station terminals (1-8).

Step 4: Program & Upgrade
Follow the 3 easy steps on the dial to set up your watering schedules. If utilizing smartphone control, simply plug the Rain Bird LNK WiFi module into the accessory port and connect via the mobile app.

Does the Rain Bird ESP-TM2 include Wi-Fi out of the box?
No, the Rain Bird ESP-TM2 is Wi-Fi compatible but requires the separate Rain Bird LNK WiFi module to connect to your smartphone and home network.

Once the LNK module is plugged in, you gain full access to remote monitoring and intelligent weather-based adjustments via the free Rain Bird app.

Do I need an electrician to hardwire this controller?
No! Unlike many outdoor-rated controllers, the ESP-TM2 comes with a factory-installed 6-foot outdoor-rated power cord. You can safely mount it outside and simply plug it into a standard exterior 120V outlet.

This saves significant time and money on installation.

What valves work with the Rain Bird ESP-TM2 controller?
This AC controller must be paired with standard 24V AC irrigation valves. It outputs 24VAC power and will not operate battery-powered DC latching solenoids.

Ensure all valves in your manifold are AC-compatible before wiring them into the 8 station terminals.

How should I prepare my Rain Bird ESP-TM2 for spring watering?
Prepare the Rain Bird ESP-TM2 for spring by verifying it is plugged in securely, testing your 24V AC valve connections, and programming a conservative initial watering schedule.

If you are using the LNK WiFi module, open the app to ensure your firmware is updated and that the "Automatic Seasonal Adjust" is toggled on to accommodate wet spring weather.
