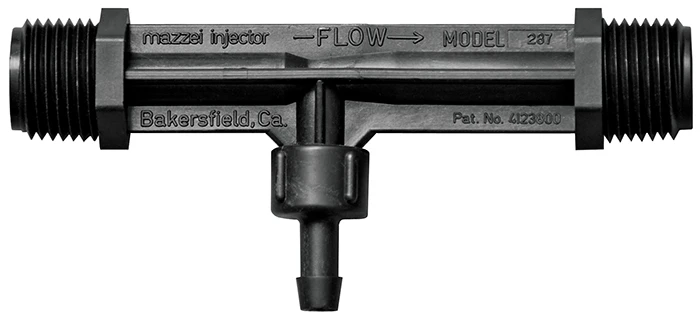

The 1/2" Mazzei Fertilizer Injector is a commercial-grade, Venturi-style injector with no moving parts — nothing to wear out or break down. Using differential pressure (the Venturi effect), it draws liquid fertilizer from virtually any open container directly into your irrigation mainline, delivering nutrients precisely to the root zone. This method of fertilizing through your irrigation system — known as fertigation — maximizes fertilizer efficiency and reduces labor. Three models are available to match your system's flow rate; a suction assembly (sold separately) is required to complete the unit.
The injector can be plumbed directly in-line on the mainline or, preferably, on a bypass assembly using ball valves for easier flow control and less system restriction. Sizing is critical: select the model that matches your irrigation system's actual operating flow rate (GPH). An oversized injector will not draw fertilizer; an undersized one will restrict flow. When in doubt, choose the smaller model and install it on a bypass. Rebuild kits are available for all models.
All three 1/2" models share the same 1/2" Male NPT inlet/outlet connections, a maximum operating pressure of 120 PSI, and a maximum operating temperature of 212°F. Select your model based on system flow rate.
| Model | Flow Range | Connection | Material | Max Pressure | Max Temp |
|---|---|---|---|---|---|
| 283 (Very Low Flow) | ~0.17–0.76 GPM motive flow | 1/2" Male NPT | PP or N-PVDF | 120 PSI | 212°F |
| 287 (Low Flow) | ~0.29–1.3 GPM motive flow | 1/2" Male NPT | PP or N-PVDF | 120 PSI | 212°F |
| 384-X (High Flow) | ~0.71–3.5 GPM motive flow | 1/2" Male NPT | PP or PVDF | 120 PSI | 212°F |
All models feature a 1/4" tubing barb suction port (default) and an integrated check valve. The 384-X also offers an optional 1/4" Male NPT alternate suction port. See the Injector Performance Table for detailed flow and suction data at all operating pressures.
Venturi Operation
As water flows through the injector body, it passes through a constricted throat that creates a pressure drop. This pressure differential generates suction at the suction port, drawing liquid fertilizer or other water-soluble amendments up from an external container and mixing them uniformly into the water stream. The injector requires a minimum pressure differential of approximately 5 PSI from inlet to outlet to initiate suction.
Bypass Installation (Recommended)
Install the injector on a bypass loop using ball valves so you can throttle flow through the injector independently of the mainline. This gives you precise control over suction rate and fertilizer concentration, and allows you to isolate the injector for maintenance without shutting down the entire system.
In-Line Installation
The injector can also be installed directly in the mainline for simpler setups, though bypass installation offers more flexibility. Always install downstream of your filter and backflow preventer, and after your automated irrigation timer or valve. A backflow preventer is essential when injecting fertilizer to protect your potable water supply.
How do I choose the right model size?
Select your injector based on the total GPH flow rate of your drip system — not the flow available from your water source. Add up the combined output of all emitters, dripline, drip tape, and sprayers in your system.
An oversized injector won't draw fertilizer at all; an undersized one restricts system flow. When in doubt, choose the smaller size and install it on a bypass assembly for added control. Consult the Injector Performance Table for exact motive flow and suction data.
What type of fertilizer can I use?
Use only liquid or fully water-soluble fertilizers with less than 0.5% insoluble impurities. The Mazzei works by suction and requires liquid inputs — dry granular fertilizers must be fully dissolved before use.
Always flush your system with clean water for at least 10 minutes after every fertigation cycle to prevent residue buildup in emitters and tubing.
Can I leave the injector under constant pressure?
Most injector configurations should be installed downstream of an automated timer or valve so they are only pressurized during active irrigation. Always check your specific model's installation requirements and consult the backflow prevention guidelines for your setup.
Can the injector be repaired?
Yes. Rebuild kits are available for all 1/2" Mazzei injector models and include replacement check valve components (ball, seal ring, and spring).
Shop Mazzei Rebuild Kits to restore your injector to full performance without replacing the entire unit.
Three components are required to assemble a fully operational Mazzei fertigation setup:
Browse the full Mazzei injector and accessories collection to build your complete fertigation kit.
