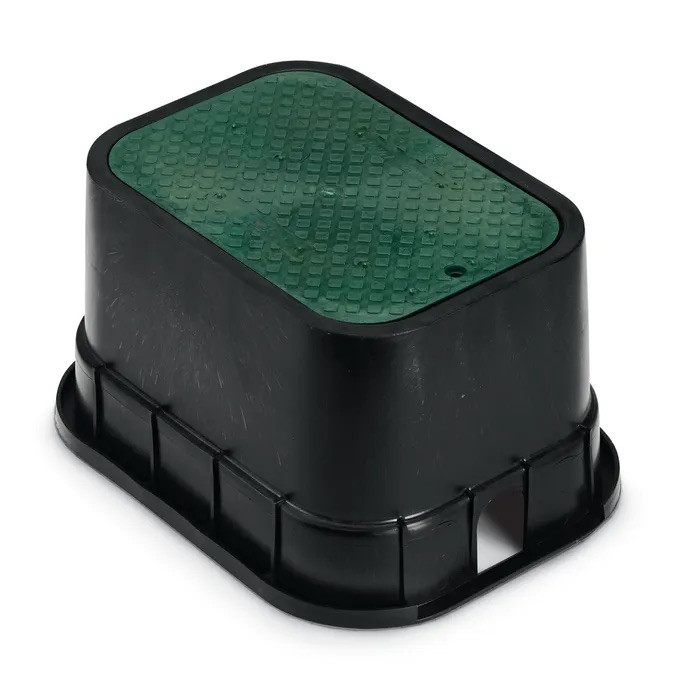

The Rain Bird 12" PVB Rectangular Valve Box is an essential, professional-series enclosure designed to protect your most critical underground irrigation components. Whether you are housing a multi-zone manifold or a series of automated irrigation valves, this rugged box shields your equipment from the elements, heavy foot traffic, and lawn care machinery.
Manufactured strictly to Rain Bird's exacting standards and proudly Made in America, the PVB series features reinforced sidewalls and wide bottom flanges to prevent sinking and crushing. The included green lid sits flush with your landscape, offering a skid-resistant texture and a double ledge support system that easily bears the weight of mowers and pedestrians. With drop-in locking capabilities, this box ensures your system stays safe, clean, and accessible whenever maintenance is required.
Detailed dimensions for accurate system planning.
| Specification | Details |
|---|---|
| Manufacturer | Rain Bird |
| Series | PVB (Professional Valve Box) |
| Shape | Rectangular (Jumbo/Standard Hybrid) |
| Material | High-Density Professional Plastic |
| Top Opening Dimensions | 18 1/4" L x 13" W |
| Bottom Opening Dimensions | 21 1/4" L x 15 15/16" W |
| Overall Height | 12" H |
| Color | Black Body, Green Lid |
Proper installation guarantees a clean, accessible, and well-draining manifold.
Step 1: Excavate the Site
Dig a hole slightly wider than the 21 1/4" x 15 15/16" bottom footprint of the box, ensuring it is deep enough to accommodate the 12-inch height plus a gravel base.
Step 2: Add a Gravel Base
Pour 2 to 3 inches of washed pea gravel into the bottom of the hole. This critical step ensures proper drainage so your valves do not sit in standing water or mud.
Step 3: Position the Box
Place the black valve box body over your valve manifold. Ensure the irrigation pipes route cleanly under the bottom edges or through the provided pipe slots.
Step 4: Backfill and Level
Make sure the top edge of the box sits flush with or slightly above the final soil grade. Backfill dirt firmly around the outside of the box, then drop the green lid into place.
Will the green lid of the Rain Bird 12" PVB Valve Box fade in the intense summer sun?
The Rain Bird 12" PVB Valve Box is manufactured using UV-resistant plastic, preventing the green lid from fading or becoming brittle during harsh summer heat waves.
Because valve boxes spend their entire lifespan exposed to the elements, this professional-grade UV protection ensures the lid continues to blend seamlessly with your lawn year after year without cracking.
Can I lock the lid on the Rain Bird PVB Rectangular Valve Box?
Yes, this valve box features a drop-in lockable lid design. You can secure the lid to prevent unauthorized access, tampering, or accidental removal by heavy lawn equipment.
Locking the lid is highly recommended in commercial settings, public spaces, or households with curious children and pets.
How many valves can fit inside the Rain Bird 12-inch PVB Valve Box?
This 12-inch rectangular valve box comfortably houses a standard 3-valve or 4-valve manifold assembly, providing plenty of room for wiring, solenoids, and future maintenance access.
Always leave a few inches of clearance around each valve. Trying to cram too many valves into a single box makes future repairs and solenoid replacements incredibly difficult.
Do I need to put gravel under the Rain Bird PVB Jumbo Valve Box?
Yes, you should always install a 2 to 3-inch layer of clean gravel at the bottom of the Rain Bird PVB Valve Box to ensure proper drainage.
A gravel base prevents mud from building up around your valves and electrical connections. Without drainage, winter freezes or heavy rains can submerge your solenoids and cause electrical failures.
Best practices for this valve box:
