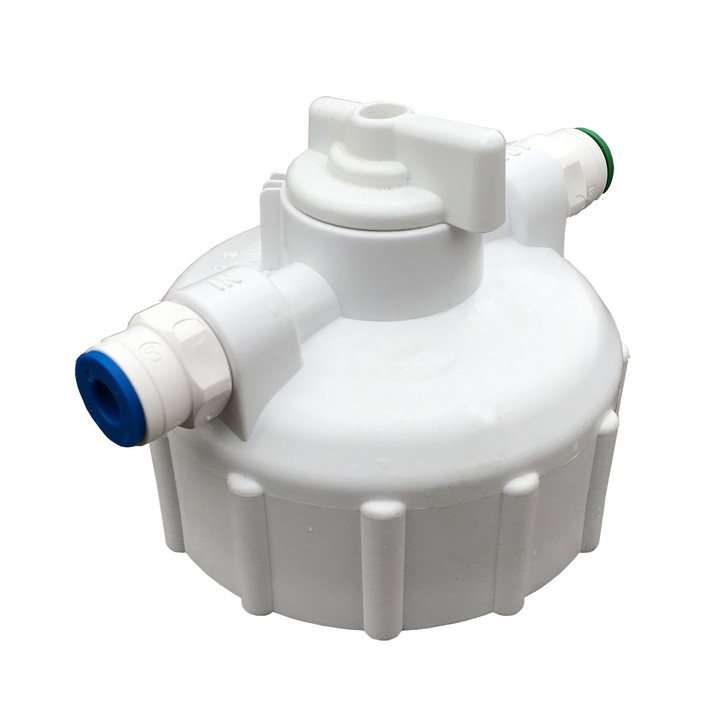

The EZ-FLO Coarse High-Pressure Cap with Nuts and Dip Tubes (CAP-KIT CX) is the genuine OEM replacement cap assembly for EZ-FLO CX-series fertilizer injectors. If the cap on your existing EZ-FLO fertilizer injector is cracked, leaking, or has a worn proportioning knob, this kit restores your unit to full working order without replacing the entire injector. Built from Schedule 80 PVC for durability in high-pressure mainline applications, it ships with two 16-inch universal dip tubes and the locking nuts required for installation. All other replacement parts — such as O-rings, flow discs, and tanks — are sold separately and available in the EZ-FLO Replacement Parts & Accessories section.
Specifications for this replacement cap assembly.
| Specification | Details |
|---|---|
| Part Number | CAP-KIT CX (DripWorks SKU: IEZCAPTUBE) |
| Material | Schedule 80 PVC |
| Thread Type | Coarse Thread |
| Dip Tube Length | 16 inches (Universal) |
| Dip Tubes Included | Yes (2 included) |
| Nuts Included | Yes |
| Pack Quantity | 1 cap assembly per pack |
| Brand | EZ-FLO |
This cap kit (CAP-KIT CX) is compatible with the following EZ-FLO injector models:
2017 and Newer Models:
Pre-2017 Models Also Supported:
This Cap Kit Replaces These Discontinued Parts:
Will this cap work on my older EZ-FLO injector purchased before 2017?
Yes. Per EZ-FLO, this updated CAP-KIT CX is backward-compatible with pre-2017 CX-series models including EZ001-CX, EZ003-CX, EZ 2005-HB, EZ 2020-HB, EZ 1010-HB, EZKIT-1, and EZKIT-3.
It also serves as the direct replacement for two discontinued cap parts: IEZCAP (CAP-MPT) and IEZCAPHCRS (CAP-HPC).
What else is included in this kit besides the cap?
This kit includes the replacement cap, two 16-inch universal dip tubes, and the locking nuts needed for installation.
All other components — such as O-rings, flow disc kits, tanks, and quick connects — are sold separately in our EZ-FLO Replacement Parts & Accessories section.
Why is Schedule 80 PVC used for this cap?
Schedule 80 PVC has a thicker wall than standard Schedule 40, making it rated for higher-pressure mainline applications typical of EZ-FLO CX-series high-pressure injectors.
It also provides good resistance to the fertilizer solutions and soil amendments commonly used in fertigation systems.
Do I need to replace the dip tubes when replacing the cap?
Not always, but since this kit already includes two new universal 16-inch dip tubes, it is good practice to install the fresh ones while the injector is disassembled.
Inspect your existing dip tubes for cracks or brittleness. If you only need replacement dip tubes without the full cap, they are also available separately as EZ-FLO Dip Tube Sets.
