The Tape Grip Sleeve End is the most cost-effective solution for terminating a run of 5/8" Drip Tape. Its streamlined design creates a secure, leak-resistant seal by utilizing the tape itself as a gasket, making it a favorite for large-scale agricultural rows and market gardens where budget and speed are priorities.
Unlike bulky threaded caps, the Sleeve End is lightweight and low-profile, minimizing the risk of getting caught on equipment or foot traffic. It is one of our most practical irrigation fittings, offering a fully reusable design that allows you to open the line for flushing at the start of the season and seal it back up in seconds.
Key details for system planning.
| Specification | Details |
|---|---|
| Product Type | Drip Tape End Sleeve |
| Compatibility | Standard 5/8" Drip Tape (8 mil - 15 mil) |
| Operating Pressure | 8 - 15 PSI (Low Pressure Only) |
| Material | UV Resistant Polypropylene |
| Installation Type | Fold and Slide (No tools required) |
| MPN | C5-T5EC |
| Manufacturer | Irritec |
Follow these steps for a leak-free closure.

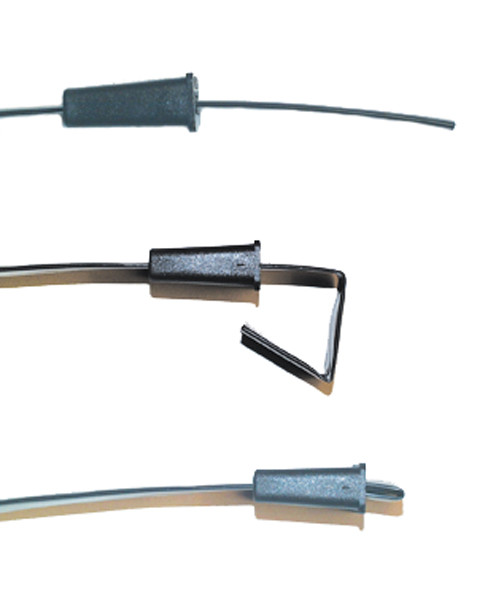

Step 1: Insert the Tape
Slide the Tape Grip Sleeve onto the end of your drip tape. Ensure the wider opening of the sleeve is facing towards the active line (upstream).
Step 2: Fold the Tape
Fold the end of the drip tape over itself 2 to 3 times (about 1 inch per fold).
Tip: For thinner 8-mil tape, an extra fold may be necessary for a tight fit.
Step 3: Slide to Lock
While holding the folded section, slide the sleeve back over the folds. Pull the tape and the sleeve in opposite directions to wedge the folds tightly inside the sleeve.
