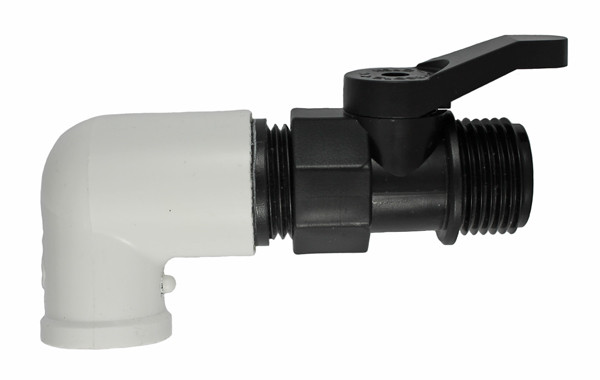

The Male Hose x 1/2" Female Pipe Elbow with Shutoff (SKU: RLSO) is one of DripWorks' most practical sprinkler-to-drip conversion fittings. The 1/2" Female Pipe Thread (FPT) inlet threads directly onto any existing 1/2" Male Pipe Thread (MPT) sprinkler riser, while the Male Hose Thread (MHT) outlet converts that riser into a standard hose-type connection — just like a faucet — so you can attach a drip system directly. Use a female hose beginning (1/2" or 3/4") to connect mainline tubing to the MHT outlet, or add a hose-threaded filter if your water source carries sediment. The built-in shutoff valve gives you independent on/off control at each individual riser without shutting off the entire zone valve.
If your riser is 3/4" MPT rather than 1/2", a threaded reducing coupler and 1/2" nipple can be used to step it down to 1/2" before threading on this fitting. For a complete step-by-step walkthrough, see the DripWorks Sprinkler-to-Drip Irrigation Conversion Guide. Need everything in one package? Browse DripWorks' full line of Sprinkler-to-Drip Conversion Kits & Components.
| Specification | Details |
|---|---|
| SKU | RLSO |
| Fitting Type | 90° Elbow with Integrated Shutoff Valve |
| Inlet Thread | 1/2" Female Pipe Thread (FPT) |
| Outlet Thread | Male Hose Thread (MHT) |
| Shutoff Valve | Yes — built-in, controls individual riser flow |
| Inlet Connects To | 1/2" MPT sprinkler riser or threaded pipe fitting |
| Outlet Connects To | Female hose beginning (1/2" or 3/4") for mainline tubing; hose-threaded filters |
| Primary Use | Sprinkler-to-Drip Irrigation Conversion |
| Prop 65 Warning | Carbon black and Titanium dioxide. See P65Warnings.ca.gov |
What does this fitting do?
It converts a 1/2" MPT sprinkler riser into a Male Hose Thread (MHT) outlet, letting you connect a drip system to an existing in-ground sprinkler riser. The 90° elbow keeps the assembly compact, and the built-in shutoff lets you control flow at each riser independently.
What thread connects to the inlet?
The inlet is 1/2" Female Pipe Thread (FPT), which connects to a 1/2" Male Pipe Thread (MPT) riser — the same thread your old sprinkler head screwed onto. Pipe threads are tapered (NPT) and require thread seal tape. Do not confuse pipe threads with hose threads — they are not interchangeable.
What can I connect to the MHT outlet?
Per DripWorks, connect a female hose beginning (1/2" or 3/4") to attach your mainline poly tubing, or add a hose-threaded inline filter if needed.
Do I need a pressure regulator?
It depends on your incoming pressure. Sprinkler systems often operate above 35 PSI, while most drip systems work at 25 PSI or less. If pressure is too high, add a pressure regulator downstream of this fitting to protect your drip components.
What if my riser is 3/4" MPT?
This fitting requires a 1/2" MPT riser. If yours is 3/4", use a threaded reducing coupler and a 1/2" nipple to step it down first. See the Sprinkler-to-Drip Conversion Guide for full details.
Can drip and sprinklers run on the same zone?
No. Drip irrigation and sprinkler heads should not run on the same zone. Cap all unused risers in the converted zone to maintain proper pressure for your drip system.
Is there a complete kit option?
Yes — DripWorks offers complete Sprinkler-to-Drip Conversion Kits that include all components for a full zone conversion. The RLSO is ideal when sourcing individual components for a custom build.
