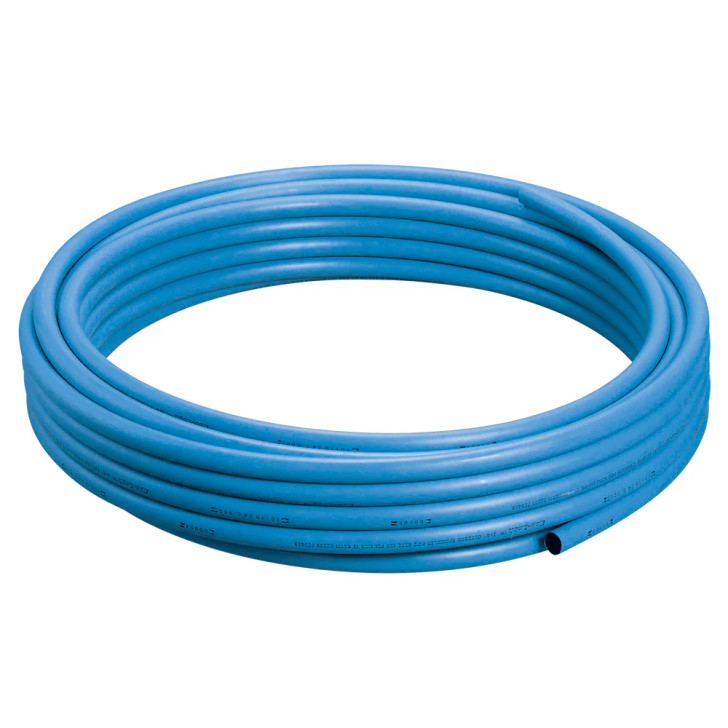

The Hydro-Rain BLP-100-CL-1X is a 1" x 100' Blu-Lock HDPE Lateral Pipe Coil rated to 100 PSI and built to the ASTM D2239 SIDR 15 standard — the perfect choice for connecting sprinkler heads, rotors, and spray bodies on the downstream (valve-out) side of your irrigation system. Forget PVC primer, glue, clamps, and barbed fittings. With Blu-Lock pipe, you simply push the pipe into any compatible Blu-Lock push-to-connect fitting for an instant, leak-proof connection — no tools required.
Made from virgin high-density polyethylene (HDPE), this blue-colored pipe is significantly more durable than traditional PVC. HDPE has a failure rate roughly 200 times lower than PVC under extreme weather conditions, and it handles thermal expansion far better — expanding and contracting with temperature swings without cracking. The 1.07" ID x 1.21" OD outside-diameter design delivers up to 25% better flow compared to traditional insert barb fittings, and the pipe is rated for flow up to 16 GPM at pressures between 10 and 100 PSI. The flexible coil format is easy to handle, unroll, and route through a trench on any job site.
This pipe is designed for use exclusively on the downstream/valve-out side of irrigation station valves — it is not rated for constant-pressure mainline use. Need a smaller lateral pipe? DripWorks also carries the 3/4" x 100' Blu-Lock Coil (BLP-075-CL-1X) and the 1/2" x 100' Blu-Lock Coil (BLP-050-CL-1X) for smaller zones and swing pipe applications.
| Specification | Details |
|---|---|
| SKU | PBL1100 |
| MPN | BLP-100-CL-1X |
| Pipe Size | 1 inch |
| Length | 100 feet (coil) |
| Inside Diameter (ID) | 1.07" |
| Outside Diameter (OD) | 1.21" |
| Working Pressure | 100 PSI |
| Burst Pressure | 220 PSI |
| Operating Pressure Range | 10 – 100 PSI |
| Flow Rate (1") | 0 – 16 GPM |
| ASTM Standard | ASTM D2239, SIDR 15 |
| Material | Virgin HDPE (High-Density Polyethylene) |
| Color | Blue |
| Temperature Rating | Up to 100°F |
| UV Rating | 3-Year |
| Fitting Compatibility | Hydro-Rain Blu-Lock 1" push-to-connect fittings only |
| Application | Valve-out lateral pipe only (NOT for constant-pressure mainline use) |
| Brand | Hydro-Rain |
What is Blu-Lock pipe and how does it work?
Blu-Lock is Hydro-Rain's patented push-to-connect HDPE irrigation pipe system. The pipe is made from virgin high-density polyethylene and is designed to work exclusively with Blu-Lock push-to-connect fittings. You simply push the pipe end into the fitting — stainless steel teeth inside the fitting grip the pipe and hold it securely. No glue, primer, clamps, or tools are needed. All 1" fittings are also releasable and reusable using the Blu-Lock release tool or collar.
Can I use this 1" Blu-Lock pipe with regular PVC or barbed fittings?
No. Blu-Lock pipe is designed specifically for use with Hydro-Rain Blu-Lock push-to-connect fittings only. It is not compatible with standard PVC solvent-weld fittings, barbed fittings, or compression fittings. DripWorks carries the full line of compatible Blu-Lock fittings including elbows, tees, couplers, and MPT adapters in 1" size.
Is this pipe rated for mainline or constant-pressure use?
No. This pipe is rated for lateral use only — meaning it must be installed on the downstream side of a station valve, where water flow is intermittent and controlled. It is not rated for mainline use where the pipe is under constant pressure. Using it on a mainline could result in failure and leaks.
Why choose HDPE Blu-Lock pipe over PVC?
HDPE has a substantially lower failure rate than PVC under extreme weather conditions. HDPE also handles thermal expansion approximately four times better than PVC, making it ideal for regions with significant temperature swings. Additionally, Blu-Lock's outside-diameter (OD) technology ensures unobstructed flow, resulting in up to 25% better flow efficiency compared to traditional insert barb fittings. HDPE is also a recyclable, environmentally friendly material.
What size Blu-Lock pipe should I use for my sprinkler lateral?
The right size depends on your zone's flow rate and the number of heads on the lateral. The 1" pipe (this product) is best suited for higher-flow zones and larger residential or commercial applications with up to 16 GPM. For smaller zones, DripWorks also carries the 3/4" Blu-Lock Coil (up to 11 GPM) and the 1/2" Blu-Lock Coil for swing pipe and low-flow laterals.
Can I use this pipe with any irrigation controller or valve?
Yes — the Blu-Lock pipe system is compatible with any standard irrigation setup that uses solenoid-operated station valves. It is designed to work downstream from the valve. DripWorks carries a full range of irrigation valves and irrigation timers and controllers to complete your system.
Do I need a special tool to disconnect a Blu-Lock fitting?
Yes — while connection is tool-free, disconnecting a 1" Blu-Lock fitting requires the Blu-Lock release tool or collar (sold separately). The release mechanism is intentional: it ensures a secure, leak-proof connection during normal operation while still allowing the fitting to be reused if you need to modify or repair the system.
What is the maximum operating temperature for this pipe?
The Blu-Lock HDPE pipe is rated for use up to 100°F. It is designed for cold water, outdoor direct-burial irrigation use only. It should not be used in hot water or above-ground exposed applications where temperatures could exceed this limit.
Before you install, verify the following:
Pair this 1" Blu-Lock lateral pipe with these essential components for a fully functional, glue-free irrigation system:
