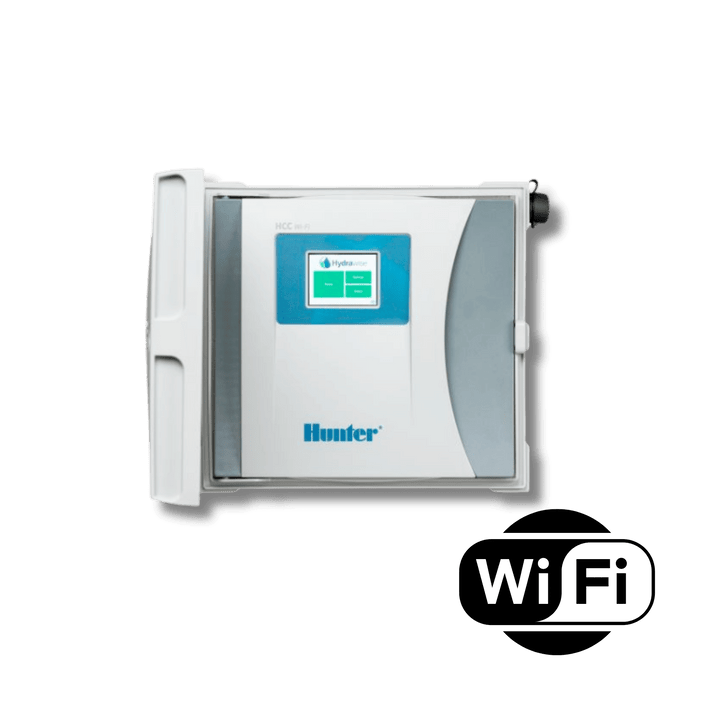

The Hunter HCC 8-Station Wi-Fi Indoor/Outdoor Plastic Controller brings advanced, cloud-based water management to high-end residential and commercial projects. Out of the box, this AC-powered base model effortlessly controls 8 stations, but its highly modular design allows for massive expansion up to 54 zones. By pairing this smart controller with standard 24V AC irrigation valves, property managers and homeowners gain complete visibility and control over complex landscapes from anywhere in the world using the industry-leading Hydrawise platform.
Engineered for professional diagnostics and efficiency, the HCC boasts a built-in milliamp sensor that makes troubleshooting faulty field wires an absolute breeze. With two dedicated sensor inputs, it easily integrates with HC Flow Meters to accurately track water usage and prevent catastrophic leaks. The unit also features a prewired SmartPort for use with Hunter's ROAM and ROAM XL remotes, granting landscapers fast, long-range manual operation without needing to pull out a smartphone. Capable of running two automatic programs simultaneously, the HCC is a true powerhouse for modern irrigation automation.
Detailed specifications for system planning.
| Specification | Details |
|---|---|
| Controller Type | AC Powered, Wi-Fi Enabled Modular |
| Base Stations | 8 Stations |
| Maximum Stations | Expandable to 54 Stations |
| Programs & Start Times | 6 Independent Programs, 6 Start Times per Program |
| Sensor Inputs | 2 (For Clik Sensors and HC Flow Meters) |
| Enclosure Type | Plastic, Indoor/Outdoor Wall Mount |
| Compatible Valves | Standard 24V AC Solenoid Valves |
| Software Compatibility | Hydrawise Cloud Software (via Wi-Fi) |
| MPN | HCC-800-PL |
Get your Wi-Fi modular controller running smoothly.
Step 1: Mount the Enclosure
Secure the plastic housing to an indoor or outdoor wall using appropriate mounting hardware. Ensure you have access to a reliable 120V AC power source and a strong Wi-Fi signal.
Step 2: Connect AC Power
Wire the controller's internal transformer to your 120V AC power supply. (Professional installation is recommended for hardwiring).
Step 3: Wire Valves & Sensors
Run multi-strand irrigation wire from your 24V AC valve manifolds to the controller. Connect common wires to the 'C' terminal and individual valve wires to the numbered station terminals. Connect your HC Flow Meter or Clik sensors to the two dedicated inputs.
Step 4: Connect to Hydrawise
Use the controller's touchscreen to connect to your local Wi-Fi network. Then, log into the Hydrawise app on your smartphone or computer to build out your advanced watering schedules and predictive weather adjustments.
Is the Hunter HCC 8-Station controller expandable?
Yes, the Hunter HCC plastic base model begins with 8 stations and can expand up to 54 total stations using easy-to-install snap-in modules.
This massive modular capacity allows the controller to scale seamlessly with new landscape additions or commercial expansions.
Does the Hunter HCC controller require Wi-Fi to operate?
While the Hunter HCC uses Wi-Fi to connect to Hydrawise software for advanced smart control, it will still run its scheduled programs automatically even if the internet connection is temporarily lost.
However, without a Wi-Fi connection, it will not be able to pull live weather data to perform predictive watering adjustments.
Can I use a flow meter with the Hunter HCC?
Yes, the Hunter HCC features two dedicated sensor inputs that are fully compatible with Hunter HC Flow Meters to accurately monitor water usage and prevent waste.
Integrating a flow meter allows the Hydrawise software to alert you instantly if there is a burst pipe or a leaking valve in your system.
How should I prepare my Hunter HCC controller for spring watering?
Prepare the Hunter HCC for spring by checking your 24V AC valve connections, verifying your Wi-Fi connection to Hydrawise, and using the app's predictive watering adjustments to automatically scale schedules for early-season weather.
You can also utilize the controller's built-in milliamp sensor to quickly test all field wiring for shorts or breaks after the winter freeze.
Please note the requirements for this smart AC controller:
Ensure your multi-zone AC irrigation setup is ready to run with these recommended products:
