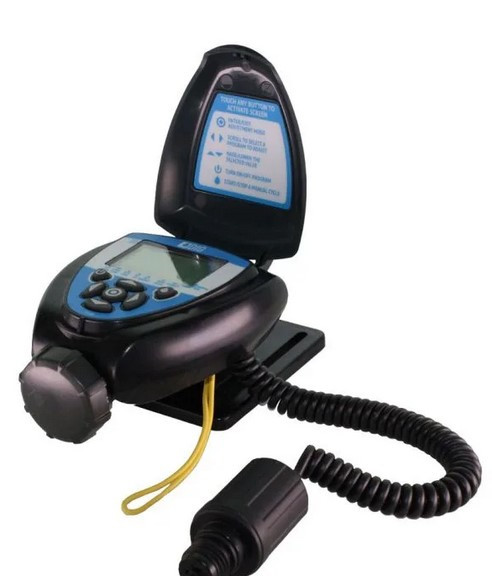

The DIG 710A Battery Operated Controller with 3 Valve Adapters (710A-000) provides exceptional flexibility and commercial-grade reliability for your irrigation system. This easy-to-use, single-station controller features a two-wire DC latching solenoid designed to be installed either above ground or directly below grade in a valve box. Completely waterproof and built to withstand harsh environments, the 710A ensures your plants get the right amount of water without the need for hardwired electrical connections. When paired with compatible irrigation valves, it serves as a powerful standalone automation solution for remote gardens, residential landscapes, or commercial sites.
Programming is simple and intuitive thanks to the large, easy-to-read LCD screen and seven-button keypad. The controller offers extensive scheduling flexibility, including up to five start times per day in weekly, even, odd, or cyclical modes. It also includes advanced features like a rain delay of up to 99 days with automatic restart, and 20 preset smart programs utilizing historical Evapotranspiration (ET) data to maximize water conservation. With monthly and daily programming restriction options, the DIG 710A easily complies with city and municipal watering codes.
Detailed specifications for system planning.
| Specification | Details |
|---|---|
| Controller Type | DC Battery Operated, Single-Station |
| Power Source | Two AA Alkaline Batteries (Not Included) |
| Controller Power Input | 11 Volts |
| Program Mode | Seven Keypad Buttons with LCD Display |
| Temperature Range | 38°F to 130°F (3°C to 54°C) |
| Solenoid Control Orifice | .065 inch (1.65mm) |
| Sensor Connection | Normally Closed 6-inch Yellow Wire (16 AWG) |
| Included Adapters | Rain Bird, Hunter, and Toro Valves |
| Housing Material | High Impact Plastic |
| Warranty | 3-Year Manufacturer Warranty |
Get your battery-operated controller running in just a few steps.
Step 1: Install Batteries
Remove the battery compartment cover and insert two fresh AA alkaline batteries. Ensure the cover is tightly secured to maintain the waterproof seal.
Step 2: Attach to Valve
Thread the included DC latching solenoid onto your compatible valve. If you are attaching to a Rain Bird, Hunter, or Toro valve, use the provided adapters for a secure fit.
Step 3: Program the Timer
Use the seven-button keypad and LCD screen to set the current time and day. Then, program your watering days, durations, and up to five start times per day.
Step 4: Connect a Sensor (Optional)
If using a rain sensor to further automate your system, connect it to the normally closed 6-inch yellow wire (16 AWG) extending from the controller.
Is the DIG 710A controller waterproof?
Yes, the DIG 710A controller is completely waterproof. It is designed to operate safely and reliably in harsh outdoor environments, including directly inside underground irrigation valve boxes.
Its durable, high-impact plastic housing protects internal components from moisture, mud, and debris, ensuring consistent performance.
What batteries does the DIG 710A require?
The controller requires two AA alkaline batteries for operation. We recommend using high-quality, name-brand batteries and avoiding rechargeable batteries to ensure optimal performance and longevity.
Battery life typically lasts for an entire growing season, but checking them periodically is recommended.
Can I use the DIG 710A timer with other brand valves?
Yes, the DIG 710A model includes three specific adapters that allow it to easily connect to popular third-party valves from Rain Bird, Hunter, and Toro.
This makes retrofitting existing irrigation setups incredibly simple without needing to replace your entire manifold.
Does the DIG 710A lose its memory if the batteries die?
No, the DIG 710A features non-volatile memory that retains all of your programmed watering schedules indefinitely without battery power, though you will need to reset the current date and time.
This feature provides peace of mind, knowing your smart programs and custom watering cycles are safe during battery changes.
Can I use the DIG 710A timer with other brand valves?
Yes, the DIG 710A model includes three specific adapters that allow it to easily connect to popular third-party valves from Rain Bird, Hunter, and Toro.
This makes retrofitting existing irrigation setups incredibly simple without needing to replace your entire manifold.
Does the DIG 710A lose its memory if the batteries die?
No, the DIG 710A features non-volatile memory that retains all of your programmed watering schedules indefinitely without battery power, though you will need to reset the current date and time.
This feature provides peace of mind, knowing your smart programs and custom watering cycles are safe during battery changes.
How should I prepare the DIG 710A for spring watering?
To set up the DIG 710A for spring, install fresh AA alkaline batteries, attach it to your valve, and program your initial schedule based on early-season moisture levels.
Since spring weather is often wet, utilize the built-in rain delay feature to easily pause your automatic watering for up to 99 days during heavy rain showers.
