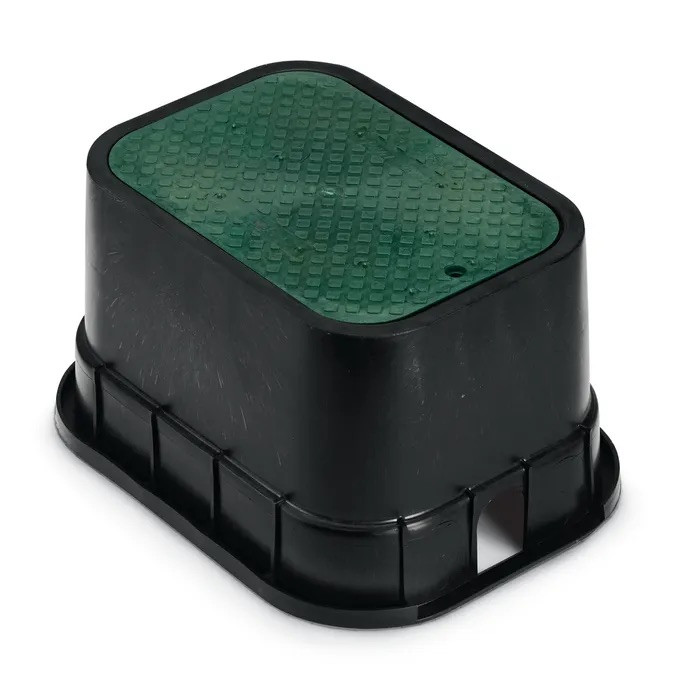

Rainbird STD PVB Valve Box

Proper installation guarantees a clean, accessible, and well-draining manifold.

Step 1: Excavate the Site
Dig a hole slightly wider than the 21 1/4" x 15 15/16" bottom footprint of the standard box, ensuring it is deep enough to accommodate the 12-inch height plus a gravel base.

Step 2: Add a Gravel Base
Pour 2 to 3 inches of washed pea gravel into the bottom of the hole. This critical step ensures proper drainage so your valves never sit in standing water.

Step 3: Position the Box
Place the black valve box body over your valve manifold. Ensure the incoming and outgoing irrigation pipes route cleanly under the bottom edges.

Step 4: Backfill and Level
Make sure the top edge of the box sits perfectly flush with the final soil grade. Backfill dirt firmly around the outside of the box, then drop the green lid into place.

Will the green lid of the Rain Bird PVB Standard Valve Box fade in the intense summer sun?
The Rain Bird PVB Standard Valve Box is manufactured using UV-resistant plastic, preventing the green lid from fading, cracking, or becoming brittle during harsh summer heat waves.

Because valve boxes spend their entire lifespan exposed to the elements, this professional-grade UV protection ensures the lid continues to blend seamlessly with your lawn year after year.

Can I lock the lid on the Rain Bird PVB Standard Valve Box?
Yes, this standard valve box features a drop-in lockable lid design. You can secure the lid to prevent unauthorized access, tampering, or accidental removal by heavy lawn equipment.

Locking the lid is highly recommended in commercial settings, public spaces, or households with curious children and pets.

How many valves can fit inside the Rain Bird PVB Standard Rectangular Valve Box?
This standard 12-inch rectangular valve box comfortably houses a standard 3-valve or 4-valve manifold assembly, providing adequate room for wiring, solenoids, and future maintenance access.

Always leave a few inches of clearance around each valve. Trying to cram too many valves into a single box makes future repairs and solenoid replacements incredibly difficult.

Do I need to put gravel under the Rain Bird PVB Standard Valve Box?
Yes, you should always install a 2 to 3-inch layer of clean gravel at the bottom of the Rain Bird PVB Standard Valve Box to ensure proper drainage.

A gravel base prevents mud from building up around your valves and electrical connections. Without drainage, heavy rains can submerge your solenoids and cause premature electrical failures.
