Barbed Reducing Couplers

Description
Info

Info

SKU:: Q_BRC
UPC:

Description

Connect Different Tubing Sizes. Maximize System Efficiency.

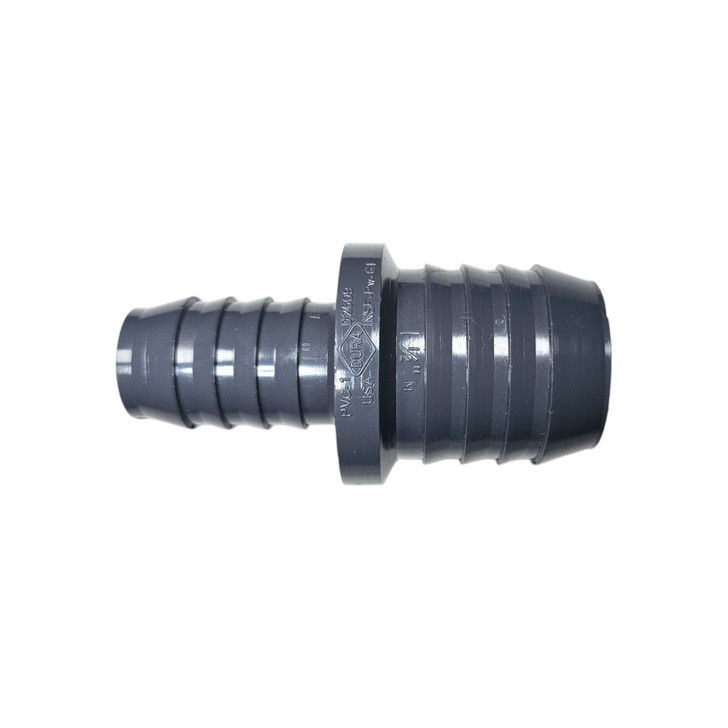

The Barbed Reducing Coupler (also known as an Insert Reducer) is the professional's choice for stepping down mainline sizes in agricultural and large-scale irrigation systems. Whether you are transitioning from a 2" header to a 1 1/2" zone line, or extending a run with smaller Polyethylene Tubing, this heavy-duty fitting ensures a secure, high-flow connection between two different tubing diameters.

Manufactured from high-impact Schedule 40 PVC, these reducing couplers feature aggressive multi-barb ridges on both ends. This design allows for a permanent "bite" into the inner wall of the tubing, creating a leak-proof seal that can withstand the pressure demands of commercial orchards, vineyards, and greenhouses when secured with stainless steel worm gear clamps.

Why Choose Dura Barbed Reducers?

Seamless Transitions: Effortlessly connect larger supply lines to smaller distribution lines without the need for complex glued manifolds or multiple bushings.
High-Flow Design: The smooth internal bore minimizes turbulence and friction loss, ensuring that water pressure is maintained even when stepping down sizes.
Heavy-Duty Durability: Molded from robust Schedule 40 PVC, these fittings are built to resist cracking, chemical corrosion from fertilizers, and environmental stress.
Secure Grip: The sharp, deep barbs provide exceptional holding power, preventing pull-outs in high-pressure or underground installations.
Wide Range of Options: Available in various reduction combinations, including 2" x 1", 1 1/2" x 1", and 1" x 3/4", to suit any system layout.

Technical Specifications

Key specifications for sizing your reduction correctly.

Specification	Details
Product Type	Barbed Reducing Coupler (Insert x Insert)
Connection Style	Barbed Insert (Fits Inside Tubing ID)
Material	Grey Schedule 40 PVC
Fastening Requirement	Requires Worm Gear Clamps on BOTH ends
Tubing Compatibility	Polyethylene (Oval Hose or Standard Poly)
Common Brand Names	Dura, Lasco
MPNs	1429-101 (3/4" x 1/2"), 1429-130 (1" x 1/2"), 1429-131 (1" x 3/4"), 1429-210 (1 1/2" x 3/4"), 1429-211 (1 1/2" x 1"), 1429-249 (2" x 1"), 1429-251 (2" x 1 1/2")

How to Install: A Step-by-Step Guide

Install reducing couplers correctly to ensure a leak-proof transition.

Step 1: Prepare Tubing Ends
Cut both sizes of your poly tubing squarely using a tubing cutter. If working with large diameter tubing (1" or larger), softening the ends with hot water or sun exposure can make insertion easier.

Step 2: Position the Clamps
Slide the appropriate size stainless steel worm gear clamp onto both pieces of tubing before inserting the fitting.

Step 3: Insert the Fitting
Push the larger barbed end into the larger tubing and the smaller barbed end into the smaller tubing. Ensure the tubing travels all the way over the barbs to the center stop.

Step 4: Tighten Clamps
Slide the clamps into position over the barbs (avoiding the very edge of the tubing) and tighten firmly with a nut driver to create a secure seal.

✔ Compatibility Check

Check your tubing dimensions:

Insert Fittings: Designed to fit inside Polyethylene tubing. Size is determined by the tubing's Inside Diameter (ID).
Clamps Required: These are NOT lock-nut fittings. You must use metal worm gear clamps for a secure connection.
It will NOT fit standard PVC Pipe (which is measured by OD and requires glue).
It will NOT connect directly to garden hose threads.

Complete Your System

Finish your installation with these essential components:

Worm Gear Clamps: Essential for securing both ends of the reducing coupler.
Poly Tubing: Available in all sizes to match your reducer's requirements.
Tubing Cutter: Ensure clean, square cuts for the tightest possible seal.
Hold Downs: Keep your reduced lines secure and prevent movement on the ground.
