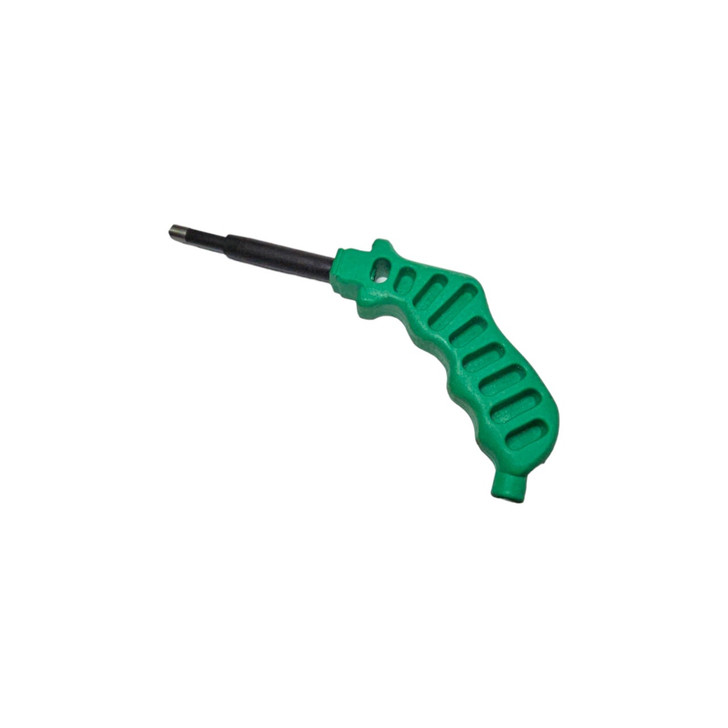

.400 Barb Punch

A quick guide to simultaneously punching and inserting large fittings.

Step 1: Load the Tool
Remove the protective plastic cover. Take your LSB400 fitting and slide it completely over the metal shaft of the punch until it rests against the base of the plastic handle.

Step 2: Position the Punch
Secure your 3/4" or 1" poly mainline tubing so it does not roll. Place the exposed hardened steel tip of the punch exactly where you want to start your drip tape row.

Step 3: Push and Twist
Apply firm, downward pressure while giving the handle a slight twist. The sharp tip will easily puncture the mainline tubing wall.

Step 4: Seat the Fitting
Continue pushing downward until the barbed end of your loaded fitting is forced into the freshly cut hole. Once the barb is fully seated, simply pull the tool straight out, leaving the fitting securely locked in the tubing.

As I lay out new agricultural rows this spring, how does the .400 Barb Punch save time?
The .400 Barb Punch punches the hole and inserts the oversized LSB400 fitting into the mainline simultaneously in under 10 seconds. This dual action dramatically speeds up large spring planting layouts.

Pushing large .400 barbs into stiff mainline tubing by hand is exhausting. By loading the fitting directly onto the tool's shaft, you use the entire handle for leverage, saving your hands and thumbs from severe fatigue.

Can I use the .400 Barb Punch on standard 1/2-inch mainline tubing?
No, you should never use the .400 Barb Punch on 1/2-inch tubing. Creating a hole this large in narrow 1/2-inch pipe structurally weakens the wall, leading to immediate blowouts under pressure.

This specialized punch and the associated .400 barbed fittings are designed strictly for thicker, high-capacity 3/4-inch, 1-inch, or larger mainline tubing used in commercial setups.

Will the .400 Barb Punch work for standard 1/4-inch drip emitters?
No, the .400 Barb Punch creates a hole that is far too wide for standard 1/4-inch transfer barbs or point-source emitters. Those smaller fittings will fall right out of a .400 hole.

If your layout requires standard 1/4" emitters, you must use a standard punch tool (like the Pocket Punch or Key Punch) to ensure a tight, leak-free seal around the smaller barbs.

How do I protect the tip of the .400 Barb Punch when not in use?
Always snap the included plastic protective cover back over the hardened steel tip when storing the .400 Barb Punch. This prevents the tip from dulling against other metal tools in your bucket.

A sharp tip is critical for this tool's dual-action performance. If the tip gets dull, it will crush and tear the tubing wall instead of cutting it smoothly, causing severe leaks around your large fittings.
