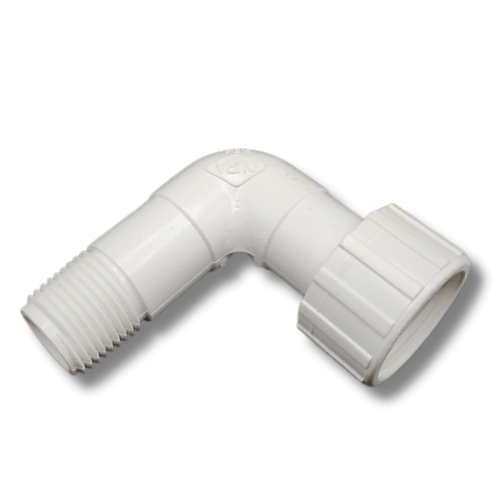

The 3/4" FHT Swivel x 1/2" MPT Elbow is a compact transition fitting designed to connect a standard garden hose spigot to a 1/2" pipe thread component at a 90-degree angle. The 3/4" Female Hose Thread (FHT) swivel nut allows for easy attachment to a faucet or hose end without twisting the entire assembly, while the 1/2" Male Pipe Thread (MPT) outlet screws directly into 1/2" Female Pipe Thread (FPT) fittings, such as PVC tees or risers.
Molded from durable Schedule 40 PVC, this elbow is ideal for creating custom drip manifolds, connecting timers to hard-piped systems, or routing water from a hose bibb into a rigid pipe layout. The swivel action ensures a tight seal against the hose washer without over-tightening.
Check your thread sizes carefully.
| Specification | Details |
|---|---|
| Product Type | Swivel Elbow Adapter |
| Connection 1 (Swivel) | 3/4" Female Hose Thread (FHT) |
| Connection 2 (Fixed) | 1/2" Male Pipe Thread (MPT) |
| Material | Schedule 40 PVC (White) |
| Washer Requirement | Requires Hose Washer on FHT side. |
| MPN | 513-005 |
Secure connections in two easy steps.
Step 1: Connect Pipe Side
Apply Thread Seal Tape to the 1/2" MPT threads. Screw the elbow into your 1/2" FPT fitting (like a PVC tee or female adapter) until hand-tight.
Step 2: Connect Hose Side
Ensure a hose washer is seated in the swivel nut. Screw the swivel onto your faucet or garden hose. Hand tighten only to avoid damaging the washer or threads.
This adapter connects:
Ensure a leak-free setup with these essentials:
