How to Troubleshoot a Lawn Sprinkler System In 6 Essential Steps

A properly functioning sprinkler irrigation system is essential for maintaining a healthy green lawn, vibrant landscaping, and efficient water usage. Many homeowners do not notice irrigation problems until they see brown patches spreading across the yard or water pooling near sidewalks. An underground sprinkler system issue is largely out of your sight until a brown patch develops, a massive puddle forms on your driveway, or your water bill suddenly skyrockets. Luckily, most sprinkler system problems can be identified early through routine inspections and troubleshooting.

By learning how to inspect and troubleshoot your system like a pro, you can save thousands of dollars on costly repair fees, conserve plenty of water, and keep your lawn looking beautiful.

Here are 6 vital steps to inspect, troubleshoot, and maintain your lawn sprinkler system.

1. Test Each Sprinkler Zone Separately

Never assume your system is working perfectly just because you see water spraying. Test each zone individually while standing in the yard to identify problems. The first step in inspecting a sprinkler system is to activate each irrigation zone individually. This allows you to spot problems in specific areas of the yard rather than trying to diagnose the entire system at once.

Go to your controller and manually activate Zone 1 for several minutes. Walk the entire zone while it runs. Observe how each sprinkler head performs and pay close attention to water coverage patterns. Then repeat the process for all other zones.

Create a Troubleshooting Checklist

While walking the zones, bring a piece of paper and some brightly colored flags, and look out for these five common issues.

• Low Water Pressure: Heads barely pop up or dribble water instead of spraying.
• Sunken Heads: Sprinkler heads that have sunk below the grass over time. This will cause the water to pool around the heads rather than spray across the lawn.
• Tilted Heads: Lawn mowers or foot traffic can cause heads to tilt forward or backward, resulting in uneven watering patterns and dry spots.
• Overspray: Water shooting directly onto your driveway, sidewalks, windows, or fences.
• Stuck Valves: A zone that doesn't turn off even when the controller is shut down, or a zone that refuses to turn on at all.

2. Inspect Sprinkler Heads for Damage and Clogs

Sprinkler heads are exposed to outdoor conditions, making them the most common source of irrigation problems. Lawn mowers, foot traffic, and freezing temperatures can all damage sprinkler heads over time. So, the most common issue homeowners face is clogged, broken, or misaligned heads. Lawn care equipment can push dirt and thatch into the nozzles, and hard water minerals can build up over time, blocking the nozzle filter.

Turn on the system, then carefully inspect each head for these problems while it is operating.

Broken Sprinkler Heads

Cracked sprinkler bodies can cause excessive spraying, flooding, or water streams. Even small cracks can waste gallons of water during every irrigation cycle.

Tilted or Sunken Heads

Sprinkler heads should sit level with the soil surface. Heads that sink below grass level spray water unevenly, which creates poor coverage.

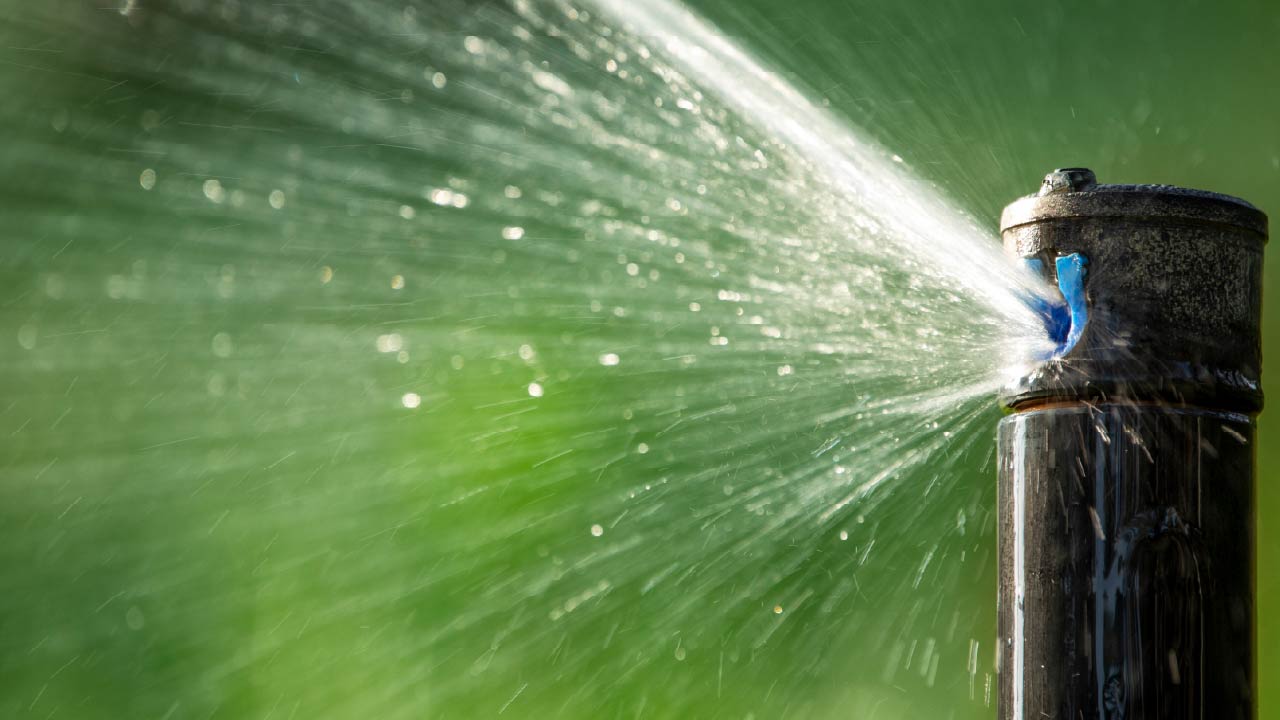

Clogged Nozzles

Dirt, sand, and debris may clog sprinkler nozzles over time. If a sprinkler head pops up but is slightly misting, sputtering, or shooting water in an irregular pattern, it is likely clogged. A clogged nozzle produces weak streams, irregular spray patterns, or dry patches in your yard.

How to Clean a Clogged Nozzle

Here is how to clean your clogged sprinkler.

• Step 1: While the zone is off, gently pull up the riser manually and hold it with a soft clamp or locking pliers wrapped with a cloth
• Step 2: Twist the plastic nozzle cap at the very top counterclockwise to remove it. Be careful not to lose the tiny plastic filter basket located beneath the nozzle.
• Step 3: Wash the nozzle and the filter basket in a bucket of clean water. Use an old toothbrush or a thin wire paperclip to clear out any stubborn sand or debris stuck in the nozzle opening.
• Step 4: Reinsert the filter, screw the nozzle back on, and release the riser. That's it, you have cleaned the nozzle.

3. Look for Underground Mainline and Lateral Line Leaks

Hidden underground leaks can silently ruin your beautiful lawn and a healthy budget. A cracked pipe underground can leak thousands of gallons of water undetected before water bills rise or lawn damage becomes obvious.

There are two types of pipe leaks to look for: mainline leaks, which are under constant pressure from the water source, and lateral line leaks, which only leak when that specific zone is actively running.

If you notice an unusual, soggy area, carefully dig around it with a shovel. Dig slowly and follow the pipe path to avoid accidentally cutting through the PVC or flexible poly-tubing with your shovel blade.

Signs of Underground Leaks

• Constantly soggy soil
• Muddy patches
• Water bubbling from the ground
• Unusually green grass areas
• Mushy turf
• Zones with weak pressure

You can perform a basic water meter test to check for hidden irrigation leaks:

• Turn off all indoor and outdoor water usage.
• Record your water meter reading.
• Wait 30 to 60 minutes without using water.
• Recheck the meter. If the reading changes, your irrigation system may have a leak somewhere underground.

Top 5 Sprinkler Upgrades for Better Efficiency

4. Examine Valves and Valve Boxes

If an entire zone fails to turn on, or if a zone turns on but refuses to shut off, your issue is not the pipes or the broken sprinkler heads. It is the zone control valve. These valves sit underground inside a plastic valve box.

Sprinkler valves control water flow to each irrigation zone. When valves don't work properly, entire sections of the system may stop functioning. So, locate every valve box around your landscape and inspect them thoroughly.

• Debris within the valve assembly can prevent proper sealing and cause continuous water flow. Sand, small rocks, grass, or sediment usually interfere with valve diaphragms.
• Electrical problems may also affect valve performance. Check all your wiring connections for corrosion, loose wire splices, or damage caused by rodents or moisture exposure.
• If a valve box constantly fills with water, there may be an underground leak near the valve manifold or nearby piping.
• Cleaning or rebuilding valves can sometimes solve the issue. However, valves that are old, cracked, or severely damaged may require replacement.

Irrigation Valves: What is a Valve and How to Fix or Replace Them

5. Review the Irrigation Timer and Controller Settings

Sometimes the sprinkler heads and valves function properly, but the controller settings are incorrect. Incorrect programming is one of the most common causes of overwatering and underwatering. Modern smart controllers are highly advanced, but power outages, dead backup batteries, or sudden programming changes can disrupt irrigation schedules.

Carefully check your timer's settings and look for incorrect watering days, multiple start times, excessive watering durations, seasonal errors, and disabled rain sensor settings.

• Power Supply and Display: Ensure the controller is plugged in and powered on. Is the screen blank? If it is, check the GFCI outlet or breaker supplying power to the controller. A tripped breaker could be the issue.
• Program Settings: Check that the correct times and durations are set for each zone. Sometimes, a simple settings reset can resolve the problem.
• The Date and Time: Power outages can reset older controllers to a default factory setting. If this happens, your sprinklers might begin watering at noon instead of dawn, wasting water to evaporation.
• The Backup Battery: Most controllers use a small coin-cell or 9V battery to save programmed data during a power failure. Replace this battery annually.

Don't forget to adjust watering schedules based on seasonal weather conditions. Lawns generally require far less irrigation during cooler months than during peak summer heat.

Pro-Tip: If your controller is more than a decade old, consider upgrading to a smart, Wi-Fi-enabled controller, such as a Hunter multi-station and RainBird smart controllers. These devices connect to local weather stations to automatically adjust watering based on rainfall and evaporation rates. They will help reduce your water bills by up to 30%.

6. Check Sprinkler Coverage and Distribution

Just because your sprinklers pop up and spray water everywhere does not mean your lawn is receiving an equal amount of moisture. Poor water coverage due to mismatched nozzles and poor head spacing might cause dry spots, overwatering, runoff, and lawn disease.

A properly designed sprinkler system should provide head-to-head coverage. This means water from one sprinkler head should reach the next head to ensure even distribution.

Perform a Catch Cup Test to Determine Water Output

A catch cup test helps evaluate how evenly water is distributed across a zone.

To perform the test:

• Collect 5 to 6 empty, clean tuna cans, cat food cans, or small plastic containers of the same size.
• Place these containers randomly throughout a watering zone, making sure to put some near the sprinkler heads and some halfway between heads.
• Turn on the watering to that specific zone and let it run for exactly 15 minutes.
• Compare water levels inside each container. You can use a ruler to measure the depth of the water collected in each container.

Test Result Analysis

Large differences in water levels mean uneven sprinkler coverage and require adjustment. For example, if one of your containers holds 0.75 inches of water and another in the same zone holds only 0.1 inches, your sprinkler system is distributing water inconsistently. This indicates poor head-to-head coverage between the heads.

How to Deal with Water-Damaged Lawn: Lawn Recovery Tips

The Bottom Line

A sprinkler system works best when all its components function correctly. A well-maintained sprinkler system saves water, prevents costly repairs, and keeps your lawn healthy year-round. Even small problems like clogged nozzles, leaking pipes, faulty valves, or incorrect timer settings can quietly waste water and damage your beautiful yard over time. Regular audits are essential for catching potential small issues before they become costly repairs that waste thousands of gallons of water.

To keep your system running optimally season after season, follow this checklist and complete it at least twice a year: once in the spring during system startup and once in mid-summer when sprinkler demand is high.

Take the time to inspect and troubleshoot your lawn sprinkler system, and you will enjoy a beautiful landscape, protect your home's foundation from water damage, and prevent wasting money on your monthly utility bills.
