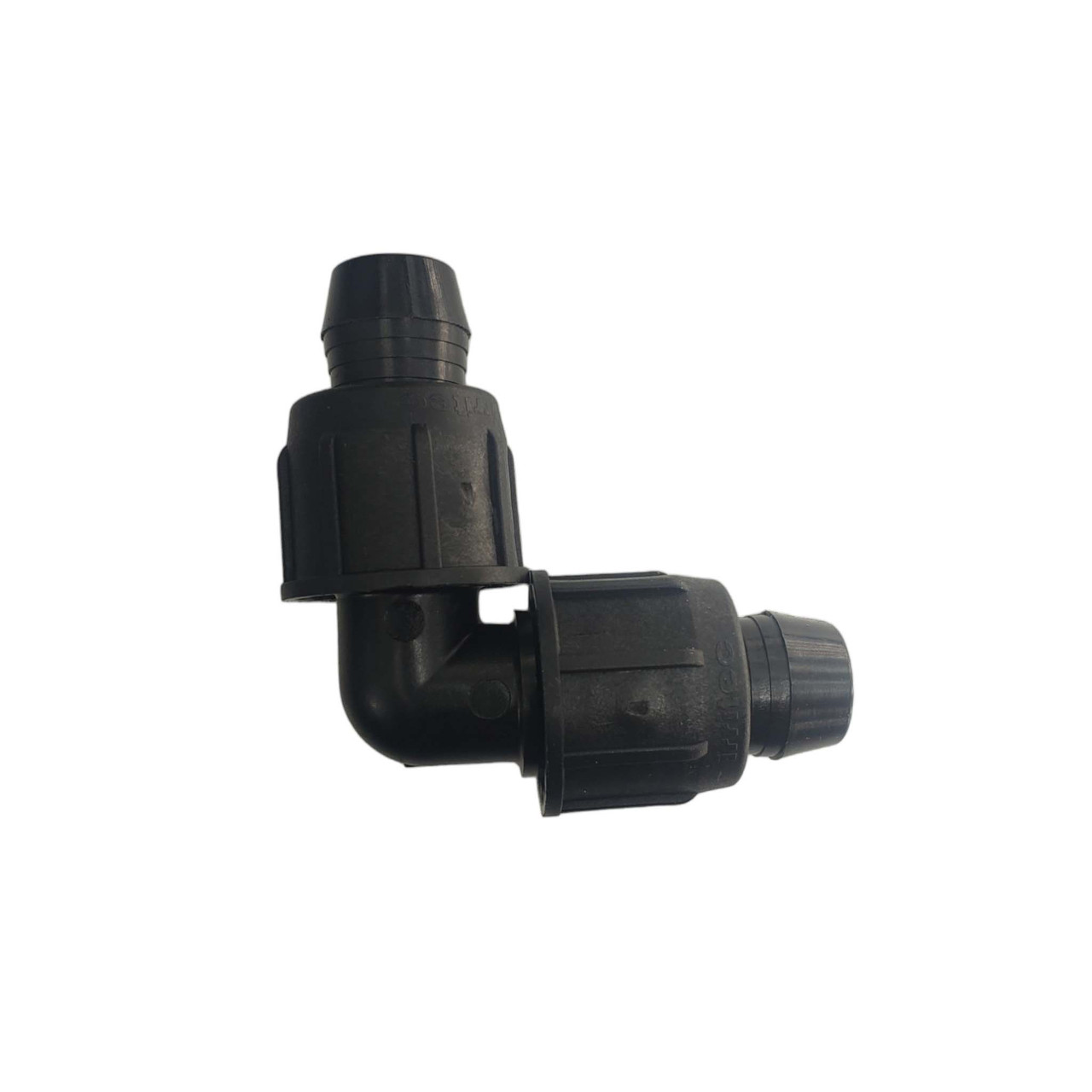

The 3/4" Easy Loc Elbow is used to make a 90-degree turn in tight spaces that would normally kink the tubing. It provides a smooth, unrestricted flow path for your water while maintaining a secure connection.
This fitting is essential for navigating corners in garden beds, routing tubing around obstacles, or creating clean, professional layouts. The Easy Loc collars ensure a leak-proof grip on both ends without the need for hose clamps or glue.
Understanding compatibility is key. This fitting connects two pieces of poly tubing.
| Specification | Details |
|---|---|
| Product Type | 3/4" Easy Loc Elbow (90 Degree) |
| Connection 1 | 3/4" Easy Loc Locking Collar |
| Connection 2 | 3/4" Easy Loc Locking Collar |
| Poly Tubing Compatibility | Fits .880" - .970" OD (Standard 3/4" Poly) |
| Operating Pressure | 0 - 60 PSI (Optimal range: 20-30 PSI) |
| Material | Polypropylene with Carbon Black/UV Stabilizers |
| Common Brand Names | Irritec, Perma-Loc, Twist-N-Lok, Spin-Loc |
Follow these steps to ensure a leak-proof connection on your poly tubing.
Step 1: Prepare Tubing
Cut your 3/4" polyethylene tubing squarely with scissors or tubing cutters. Ensure the cut is clean and free of burrs.
Step 2: Unlock the Fittings
Rotate the locking collars on both ends of the elbow backwards (towards the center) to expose the internal barbs. Do not remove the nuts completely.
Step 3: Connect Tubing
Push your poly tubing firmly over the barbs on each side until they hit the stops. You may need to use a wiggling motion to get the tubing over the barb lips.
Step 4: Lock it Down
Twist both locking collars forward (over the tubing) to clamp the connection in place. Hand-tighten firmly.
Check your tubing sizes carefully:
Ensure your Easy Loc system runs smoothly by having the right tools and accessories:
