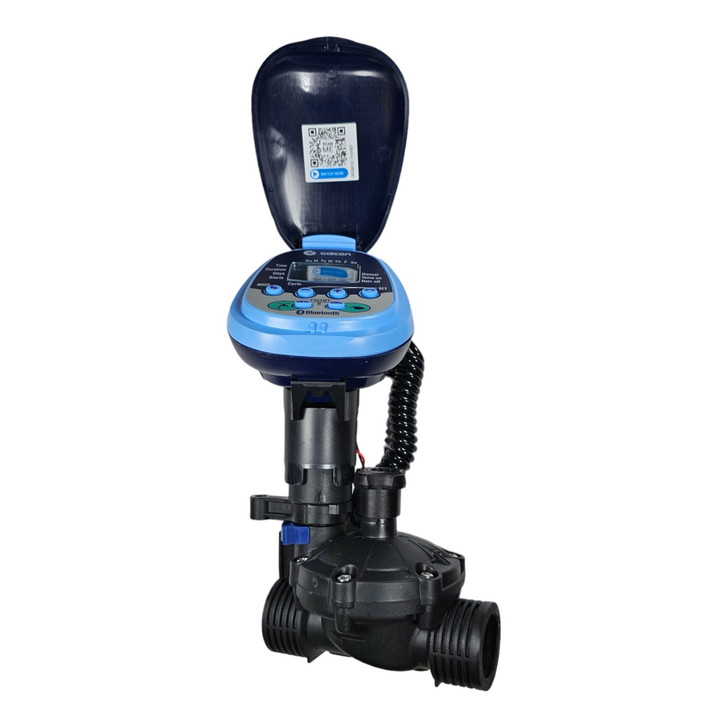

The Galcon Bluetooth High Flow Timer (7101BT) brings professional-grade watering capacity straight to your smartphone. Designed for demanding applications, this water-resistant timer features a robust built-in hydraulic latching solenoid valve capable of handling massive flow rates up to 28 gallons per minute (GPM). This makes it ideal for running large sprinkler zones, extensive drip irrigation networks, roof gardens, and expansive flowerbeds. Because of the heavy-duty nature of this assembly, we strongly recommend using a high-flow hose extension to relieve the physical weight of the timer from your faucet, and pairing it with a water filter to keep the internal valve free of debris.
Programming is incredibly versatile and user-friendly. You can set weekly, daily, or cyclical watering schedules either directly on the removable LCD controller or wirelessly from 14 to 90 feet away using the Bluetooth smartphone app. Built to withstand outdoor environments, it includes a manual override feature, low battery indicator, and comes with a convenient adapter to connect its 3/4" male pipe threads directly to your standard garden hose spigot.
Detailed specifications for system planning.
| Specification | Details |
|---|---|
| Inlet / Outlet | 3/4" Male Pipe Thread (MPT) *Includes FHT x MPT Adapter for spigot connection |
| Flow Range | 0.5 to 28 Gallons Per Minute (GPM) |
| Operating Pressure | 10 to 145 PSI |
| Start Times | Up to 4 per day (Daily, or up to every 7 days) |
| Watering Duration | 1 minute to 12 hours |
| Bluetooth Range | 14 to 90 feet (depending on surroundings) |
| Power Source | One 9-Volt Industrial Alkaline Battery (Not Included) |
| Mounting Requirement | Must be placed in a horizontal position |
| MPN | GAR6S2312BT |
| Warranty | 2 Years |
Follow these steps to safely install and program your high-flow timer.
Step 1: Install the Battery
Remove the LCD controller faceplate and insert one fresh 9-volt industrial alkaline battery. Ensure the connection is secure and replace the faceplate to maintain water resistance.
Step 2: Connect to Water Source
Thread the included Female Hose x 3/4" Male Pipe Adapter onto your outdoor spigot (or onto a hose extension if relieving weight). Attach the timer's inlet to the adapter, ensuring the timer rests in a horizontal position for proper valve operation.
Step 3: Pair via Bluetooth
Download the Galcon companion app on your smartphone. Ensure Bluetooth is enabled, open the app, and follow the prompts to pair the timer to your device.
Step 4: Program Your Schedule
Use the app (or the physical LCD buttons) to set your desired start times, run durations, and watering frequencies.
What is the maximum flow rate for this Galcon timer?
The Galcon 7101BT can handle a massive flow range from 0.5 up to 28 gallons per minute (GPM), making it ideal for large sprinkler zones and extensive drip systems.
This high capacity allows you to water substantially more plants on a single timer compared to standard residential hose-end timers.
Do I need a special adapter to connect this to my faucet?
No, an adapter is included. While the timer features 3/4" Male Pipe Thread (MPT) connections, it comes with a Female Hose to 3/4" MPT adapter to easily attach to a standard spigot.
For large heavy setups, we also recommend using a high-flow hose extension to take the physical weight off the brass spigot on your house.
How should this high flow timer be positioned during installation?
This timer must be installed and placed in a horizontal position for the internal hydraulic valve to operate correctly.
Installing it vertically can cause the latching solenoid to fail or leak, so ensuring it sits flat is a crucial setup step.
How far away can I program this timer using my phone?
You can comfortably program the timer from 14 to 90 feet away using a Bluetooth-enabled smartphone. The exact range will depend on physical obstructions like walls or heavy foliage.
This means you can often adjust your watering schedules from the comfort of your patio or back porch without having to kneel in the dirt.
Please note the following installation requirements:
Ensure your smart irrigation system runs perfectly with these recommended add-ons:
