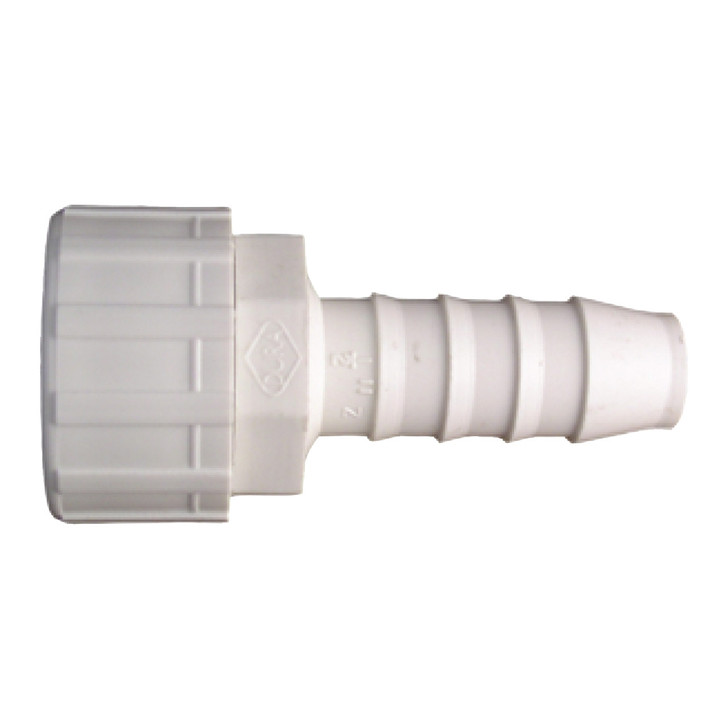

The Barbed Female Hose End Swivel is the essential link between your water source and your irrigation system. Designed with a 3/4" Female Hose Thread (FHT) swivel nut, this fitting attaches directly to any standard outdoor spigot, garden hose, water timer, or pressure regulator.
The "swivel" feature allows the threaded nut to spin independently of the barbed end. This means you can tighten the fitting onto your faucet without twisting or kinking your entire line of poly tubing. Manufactured by Dura Plastics from Schedule 40 PVC, it offers a robust, leak-resistant connection for professional and residential systems alike.
Verify your tubing size to ensure the correct fit.
| Specification | Details |
|---|---|
| Product Type | Female Hose Swivel Adapter |
| Manufacturer | Dura Plastics |
| Connection 1 (Source) | 3/4" Female Hose Thread (FHT) Swivel |
| Connection 2 (System) | Insert Barb (Fits Inside Poly Tubing) |
| Dura Part Numbers (MPN) |
1/2" Tubing: 500-005 3/4" Tubing: 500-007 1" Tubing: 500-010 |
| Material | Schedule 40 PVC (White) |
| Washer Included? | Yes (Standard Hose Washer) |
Connect your system in minutes.
Step 1: Check the Washer
Ensure the rubber hose washer is seated inside the female swivel nut. This washer is critical for a leak-proof seal.
Step 2: Connect to Source
Thread the swivel nut onto your faucet, timer, or pressure regulator. Hand-tighten until snug. Do not use Teflon tape on hose threads.
Step 3: Prepare Tubing
Slide a hose clamp over the end of your poly tubing. (Optional: Soften the tubing end with warm water to make insertion easier).
Step 4: Insert and Clamp
Push the barbed end of the fitting into the tubing until it hits the stop. Slide the clamp over the barb area and tighten it down securely.
Ensure this matches your setup:
Build a professional head assembly with these components:
