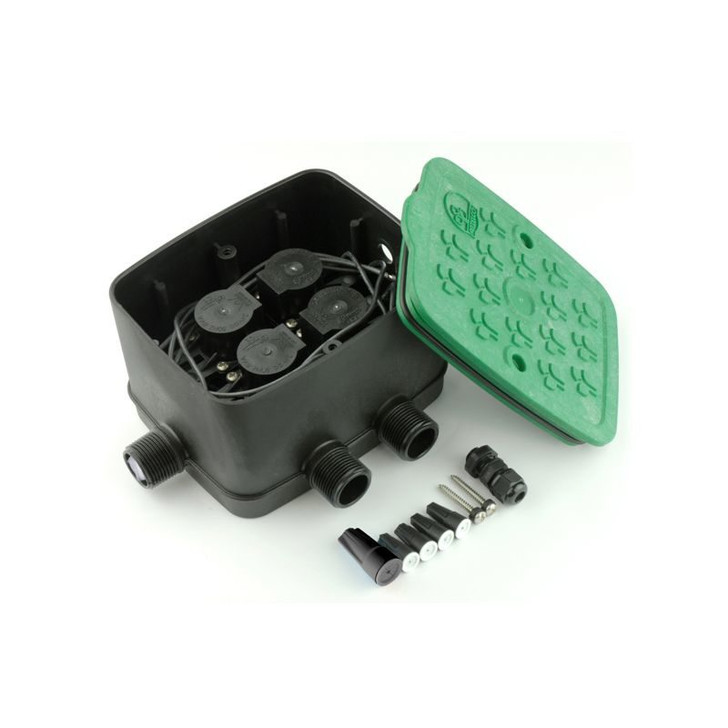

Antelco eZyvalve 4 Zone Valve Box AC

A streamlined process for setting up your 4-zone manifold.

Step 1: Connect the Water Source
Thread a compatible 3/4" FPT fitting from your main water supply onto the 3/4" MPT inlet of the eZyvalve box. Use Teflon tape on the threads to ensure a watertight seal.

Step 2: Connect Your Zones
Attach 3/4" FPT adapters to each of the four 3/4" MPT outlet ports to run mainline tubing to your individual irrigation zones. Cap any unused zones.

Step 3: Wire to Controller
Feed your multi-strand irrigation wire through the built-in cable seal. Splice the common wire and the four individual station wires to the solenoids using the included waterproof wire connectors.

Step 4: Secure and Bury
Ensure the O-ring is in place and secure the non-slip lid using the stainless-steel screws. If installing below grade, backfill dirt around the unit, keeping the lid flush with the soil surface.

How does the Antelco eZyvalve 4 Zone AC Valve Box handle intense summer heat if installed above ground?
The Antelco eZyvalve 4 Zone AC Valve Box is manufactured using high-strength UV-stabilized materials. This protects the casing from cracking, warping, or becoming brittle when exposed to direct summer sunlight above grade.

This UV protection gives you the flexibility to install the manifold wherever it is most convenient, without worrying about sun damage ruining your investment.

Does the Antelco eZyvalve 4 Zone Valve Box (AC) require manifold assembly?
No, the Antelco eZyvalve 4 Zone Valve Box comes entirely pre-assembled. The valves and manifold are built into the box with no internal threaded connections, effectively eliminating the risk of internal manifold leaks.

All you have to do is attach your incoming water line to the main inlet and your zone lines to the 4 external outlets.

What type of controller do I need for the Antelco eZyvalve 4 Zone AC?
You need a standard 24V AC irrigation controller to operate the Antelco eZyvalve 4 Zone AC. It features four 24V AC solenoids that are compatible with almost all plug-in residential irrigation timers.

If you are using a battery-operated controller or a DC latching system, this specific AC model will not work. You would need the DC version of the eZyvalve.

Can I bury the Antelco eZyvalve 4 Zone AC Valve Box underground?
Yes, you can bury the Antelco eZyvalve 4 Zone AC Valve Box underground. It features a water, dust, and pest-resistant seal with a non-slip lid to keep dirt out of the electrical components.

Just like a traditional valve box, we recommend placing a layer of gravel underneath the unit before burying it to ensure proper drainage around the connections.
